Vorsprung

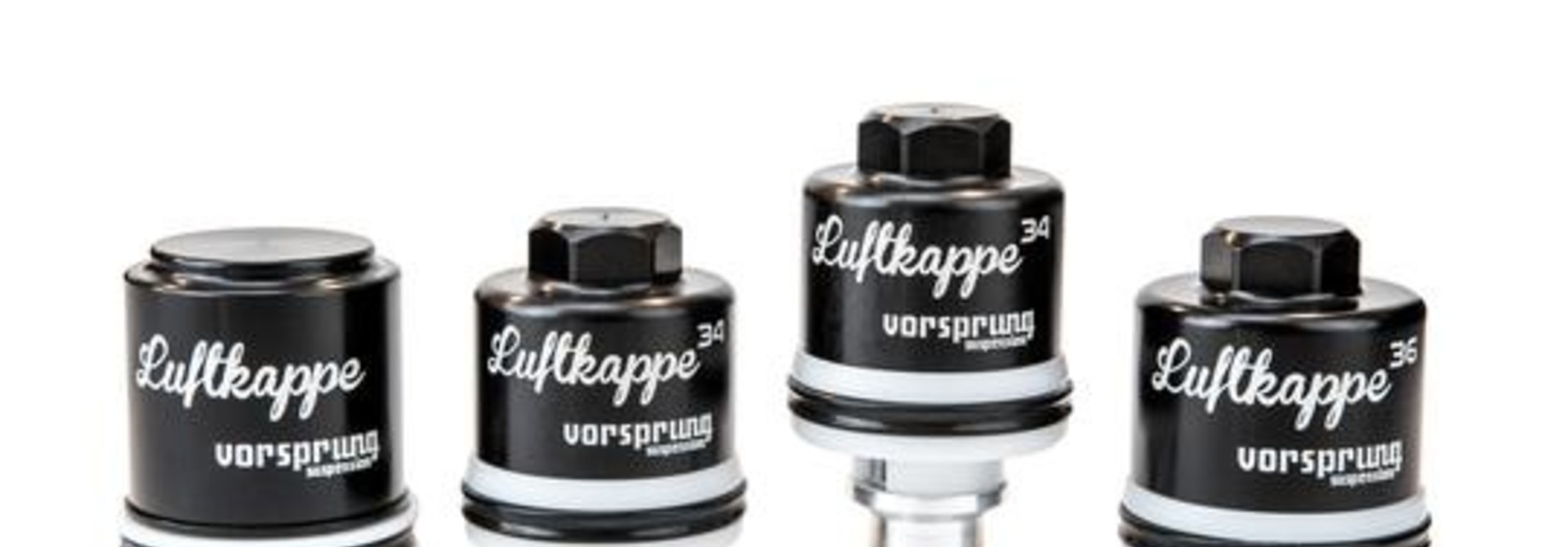

Vorsprung Luftkappe

$145.00

In store: Check availability

Make your air fork feel like a coil.

Type:

Description

Taking everything we learned with the Corset air sleeves, the Luftkappe is a new air piston assembly that enlarges the negative air chamber to reduce the initial spring rate, allowing for a higher air pressure for more support in the middle and end of the stroke with improved sensitivity in the start of the stroke.

Features:

Coil-like feel without the harsh bottoming of a completely linear spring
Larger negative air chamber
Lower initial spring rate
Increased sensitivity
Improved mid stroke support & control
Superior bump compliance and traction
Reduced hand fatigue
Reduces required compression damping
Retains Bottomless Token compatibility
Optional 10mm shaft clamps available for self-install

COMPATIBILITY:


Dual Position Air (DPA) forks of any year	Not Compatible
Rockshox Pike / Revelation < 2014	Not Compatible
Rockshox Pike / Revelation 2014 (Solo Air) all wheel sizes	LK - A1
Rockshox Pike / Revelation 2015 (Solo Air) all wheel sizes	LK - A1
Rockshox Pike / Revelation 2016 (Solo Air) all wheel sizes	LK - A1
Rockshox Pike / Revelation 2017 (Solo Air) all wheel sizes	LK - A1
Rockshox Pike / Revelation 2018 - Debonair ONLY - all wheel sizes	LK - A2
Rockshox Pike / Revelation 2019 + (Debonair) all wheel sizes	In order to fit a Luftkappe to a MY2019+ Pike / Revelation, you will need to remove the MY2019+ air shaft assembly and retrofit the previous generation Solo Air spring shaft (available separately - not through our web store). Rockshox part numbers are as follows: For 2019+ Pike/Revelation of ANY wheel size, use Luftkappe A2 variant with: 120mm: 11.4018.026.030 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 120mm 29/27) 130mm: 11.4018.026.031 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 130mm 29/27) 140mm: 11.4018.026.032 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 140mm 29/27) 150mm: 11.4018.026.033 - Air Shaft Solo Air - PIKE B1/ Revelation A1 (listed as 150mm 29/27) 160mm: 11.4018.026.034 - Air Shaft Solo Air - PIKE B1/Revelation A1 (listed as 160mm 29/27) OR use Luftkappe A1 variant with: 120mm: 11.4018.026.011 - Air Shaft Solo Air - PIKE (listed as 120mm 27.5) 130mm: 11.4018.026.010 - Air Shaft Solo Air - PIKE (listed as 130mm 27.5) 140mm: 11.4018.026.003 - Air Shaft Solo Air - PIKE (listed as 140mm 27.5) 150mm: 11.4018.026.000 - Air Shaft Solo Air - PIKE (listed as 150mm 27.5) 160mm: 11.4018.026.001 - Air Shaft Solo Air - PIKE (listed as 160mm 27.5)
Rockshox Lyrik / Yari < 2015	Not Compatible
Rockshox Lyrik / Yari 2016 (Solo Air) all wheel sizes	LK - A1
Rockshox Lyrik / Yari 2017 (Solo Air) all wheel sizes	LK - A1
Rockshox Lyrik / Yari 2018 - Solo Air & Debonair - all wheel sizes	LK - A1
Rockshox Lyrik / Yari 2019+ (Debonair) all wheel sizes	LK - A1 + Airshaft (Solo Air) In order to fit a Luftkappe to a MY2019+ fork, you will need to remove the MY2019+ air shaft assembly and retrofit the previous generation Solo Air spring shaft (available separately - not through our web store). Rockshox part numbers are as follows: 11.4018.026.001 - Air Shaft Solo Air - Lyrik/Yari (150mm) 11.4018.026.004 - Air Shaft Solo Air - Lyrik/Yari (160mm) 11.4018.026.002 - Air Shaft Solo Air - Lyrik/Yari (170mm) 11.4018.026.020 - Air Shaft Solo Air - Lyrik B1/Yari (180mm)
Rockshox Boxxer	Not Compatible
Rockshox Zeb	LK-ZEB
Fox Talas forks	Not Compatible
Fox 32	Not Compatible
Fox 34 <2016	Not Compatible
Fox 34 2016 (Float NA2) - Performance & Factory Series - 120mm & lower	Need 2018 EVOL airshaft, use LK-34/38EVOL
Fox 34 2016 (Float NA2) - Performance & Factory Series - More than 130mm	LK-34NA (discontinued)
Fox 34 2017 (Float NA2) - Performance & Factory Series - More than 130mm	LK-34NA (discontinued)
Fox 34 2018+ (Float NA2 Evol) - Performance & Factory Series - 27.5" (all travels) and 29" (140mm and lower only)	LK-34/38EVOL
Fox 34 2018+ (Float NA2 Evol) - Performance & Factory Series - 29" (150mm and higher)	Not Compatible
Fox 34 Stepcast (2019+)	LK-34/38EVOL
Fox 36 <2015	Not Compatible
Fox 36 2015 (Float NA) - Performance & Factory Series	LK-36NA
Fox 36 2016 (Float NA) - Performance & Factory Series	LK-36NA
Fox 36 2017 (Float NA) - Performance & Factory Series	LK-36NA
Fox 36 2018+ (Float NA2 Evol) - Performance & Factory Series	LK-36EVOL Note: If your MY2018 36 Evol tops out noticeably, you will need to replace your air shaft assembly before purchasing the Luftkappe. For 2019 onwards, Fox have updated this part due to the topout issues that many of the 2018 36 Evol forks had. 34 forks do not have this issue. Relevant Fox part numbers for the new air shaft assemblies, by travel: 180mm: 820-02-534-KIT 170mm: 820-02-535-KIT 160mm: 820-02-536-KIT 150mm: 820-02-537-KIT 140mm: 820-02-538-KIT 100mm (36 831): 820-02-539-KIT If your fork does not have noticeable top-out issues, you don't need to replace the shaft before installing the Luftkappe.
Fox 36 (Float NA2 Evol) E-bike Specific [SPD-PED-ELEC]	Note that this fork usually requires the 34 Float NA2 Evol Luftkappe due to its thicker stanchions having a smaller ID. Exceptions exist - eg Giant e-bikes, which still use the 36 Float NA2 Evol Luftkappe as they are standard 36s despite the e-bike stickers on the fork.
Fox 38 (2021+)	LK-34/38EVOL
Fox 40	Not Compatible
Fox Rhythm Series forks	Not Compatible
Marzocchi Z1	Not Compatible
