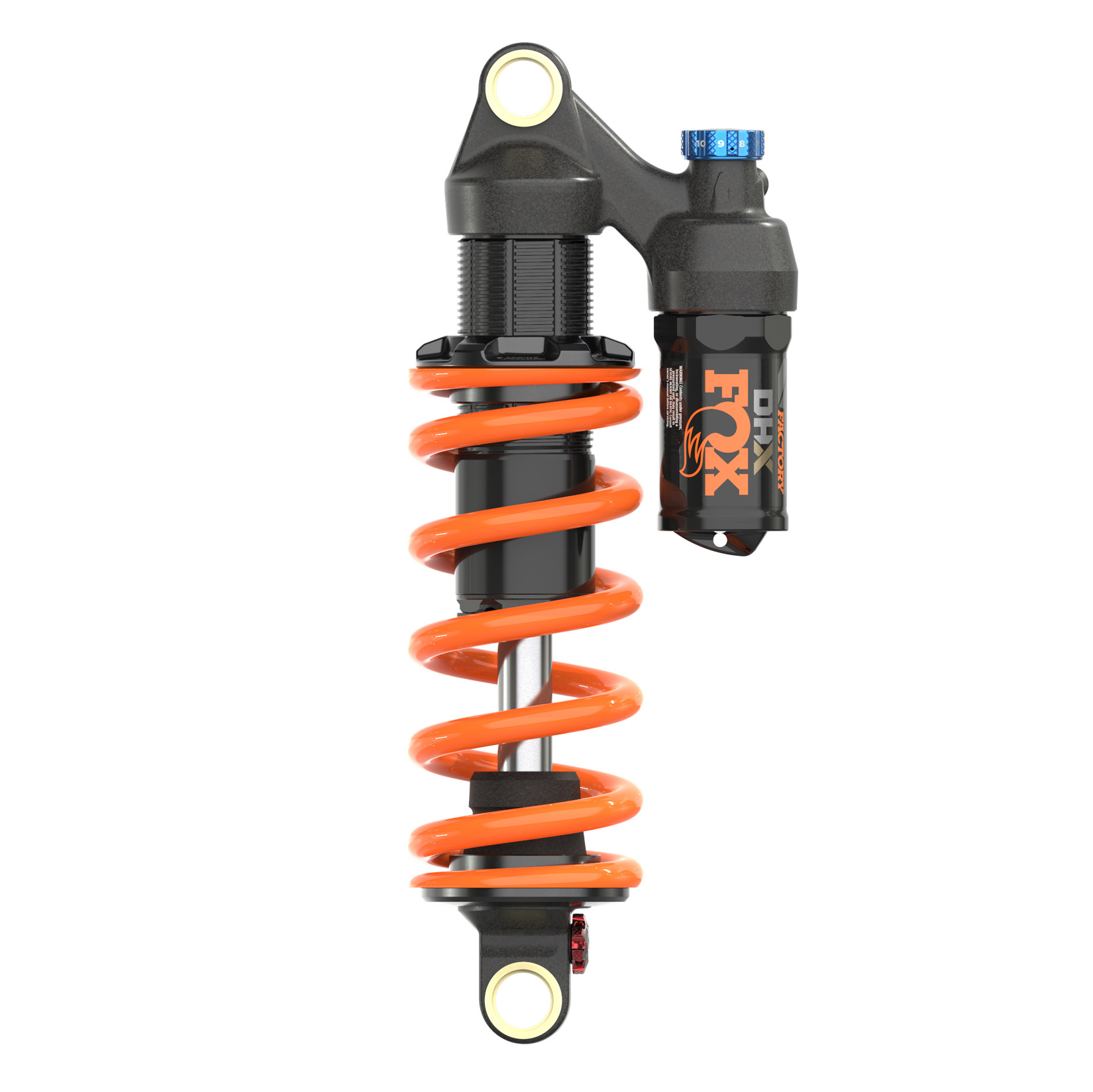

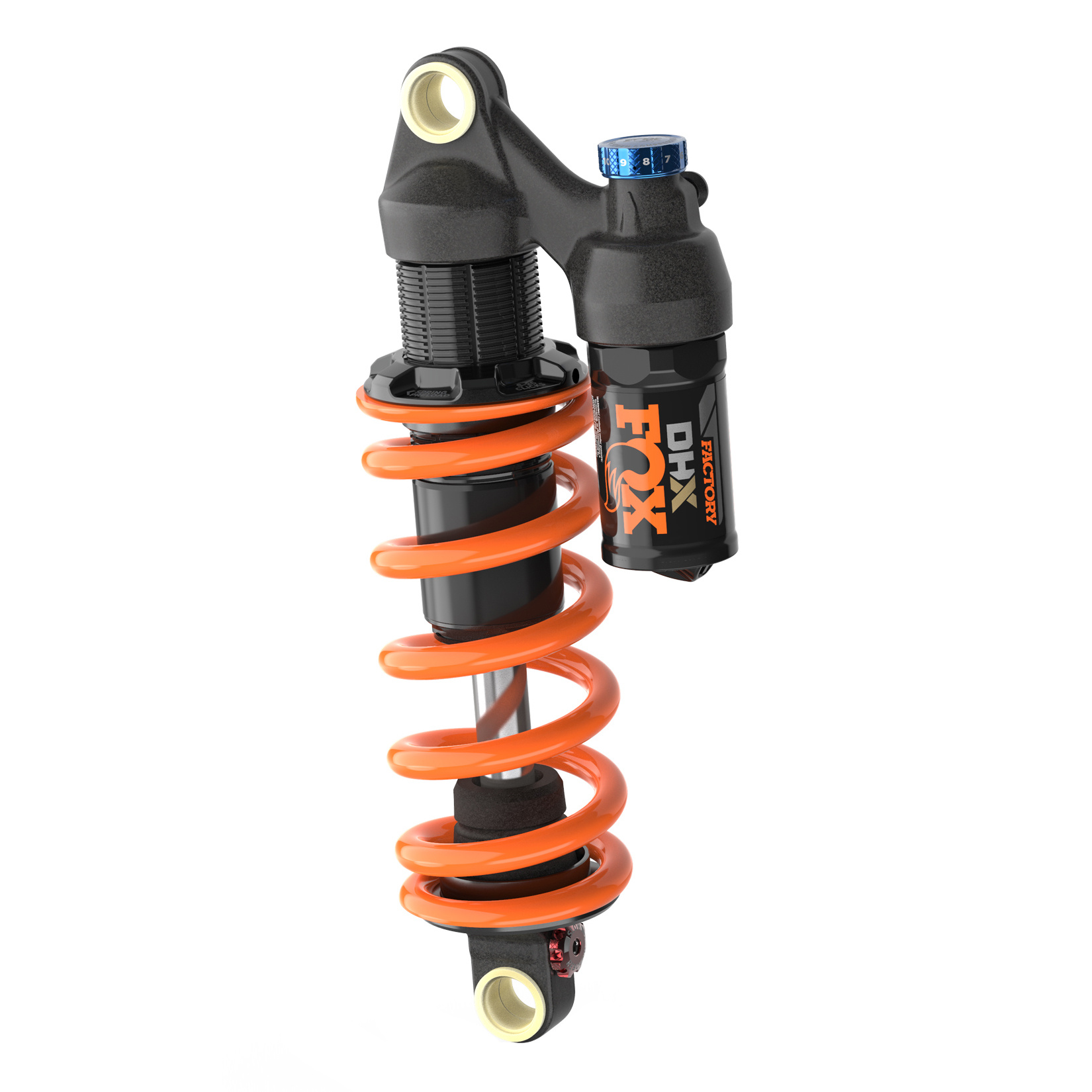

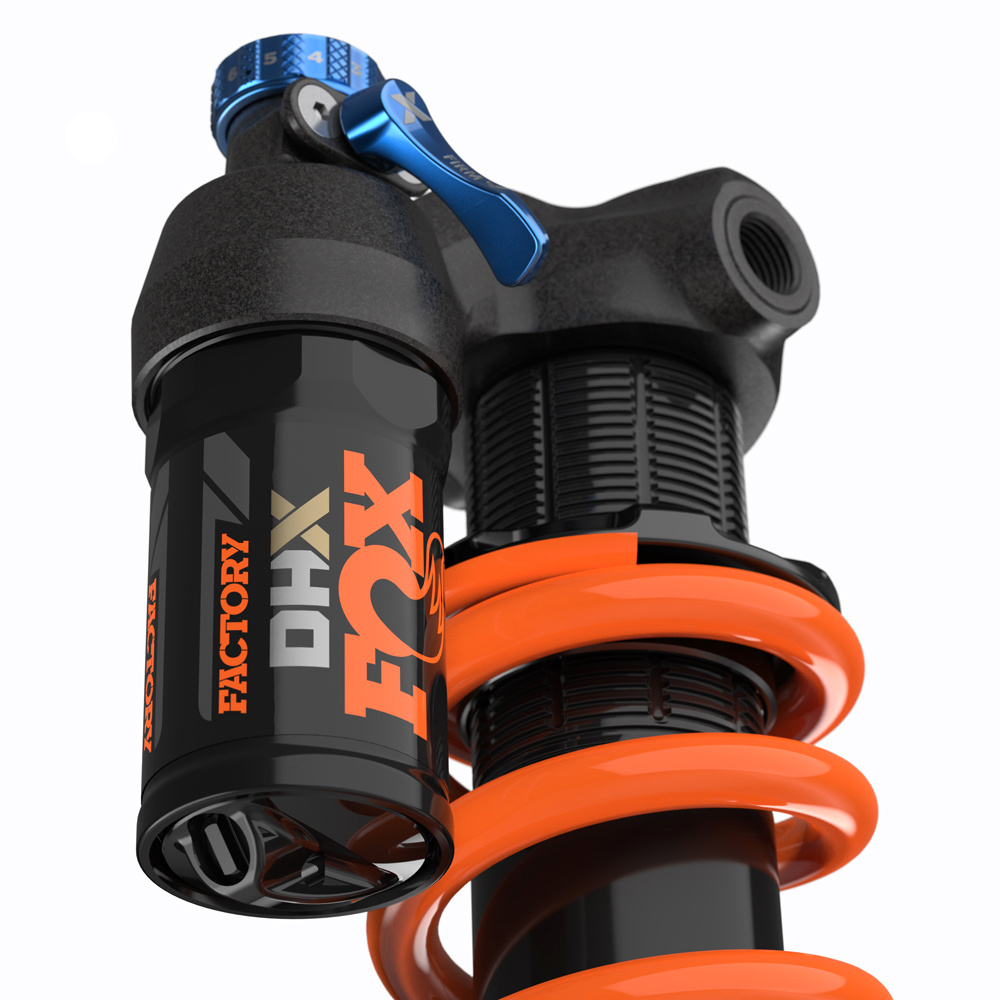

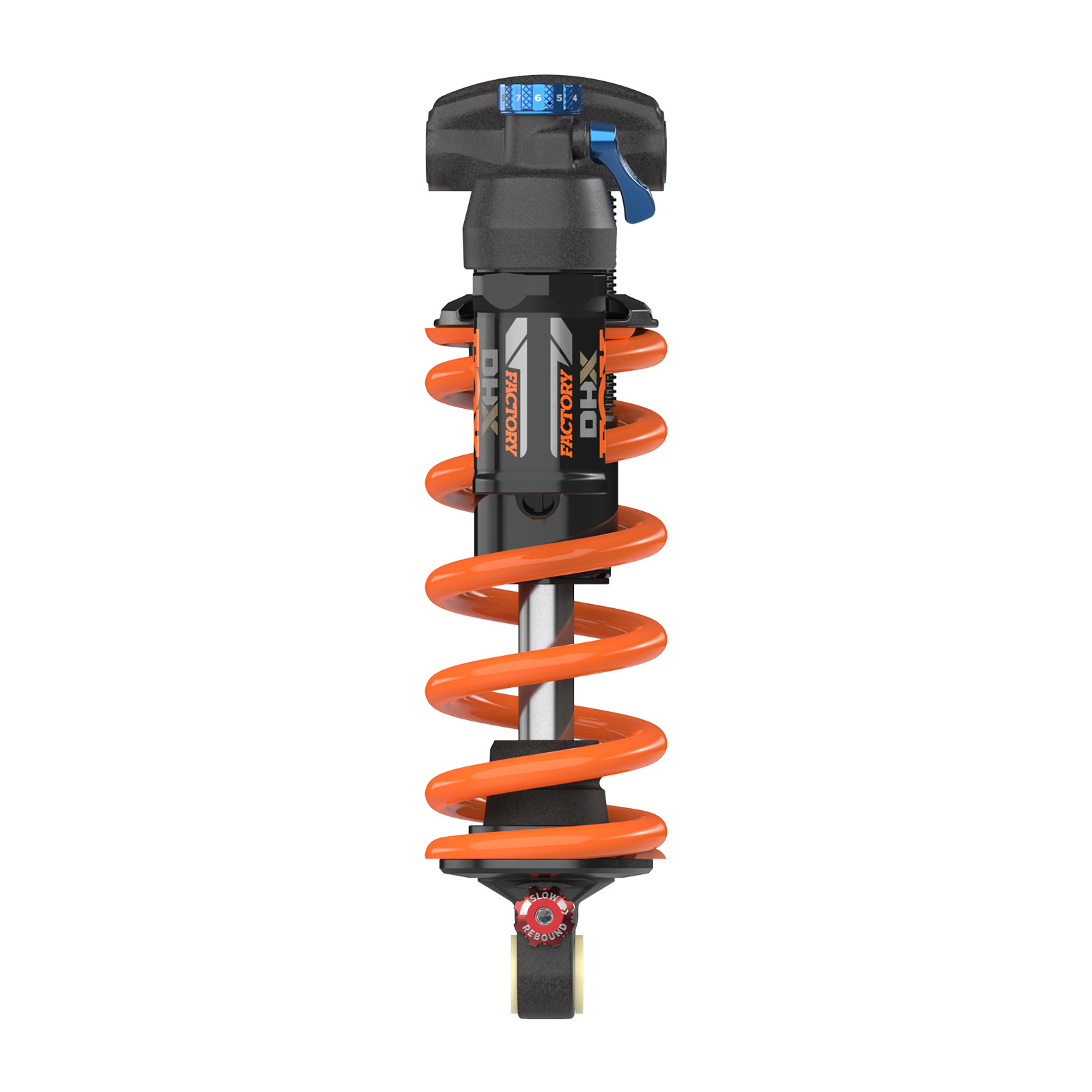

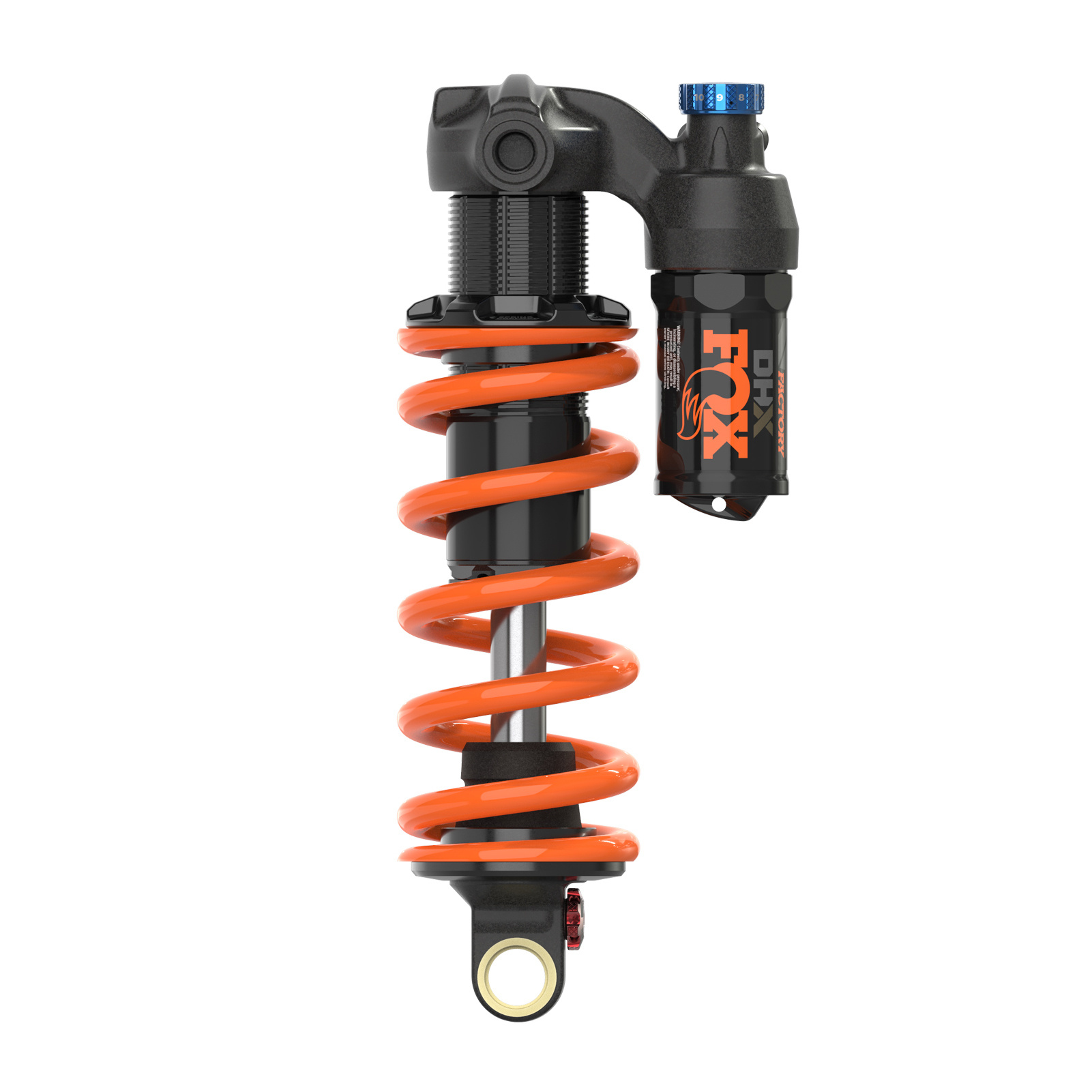

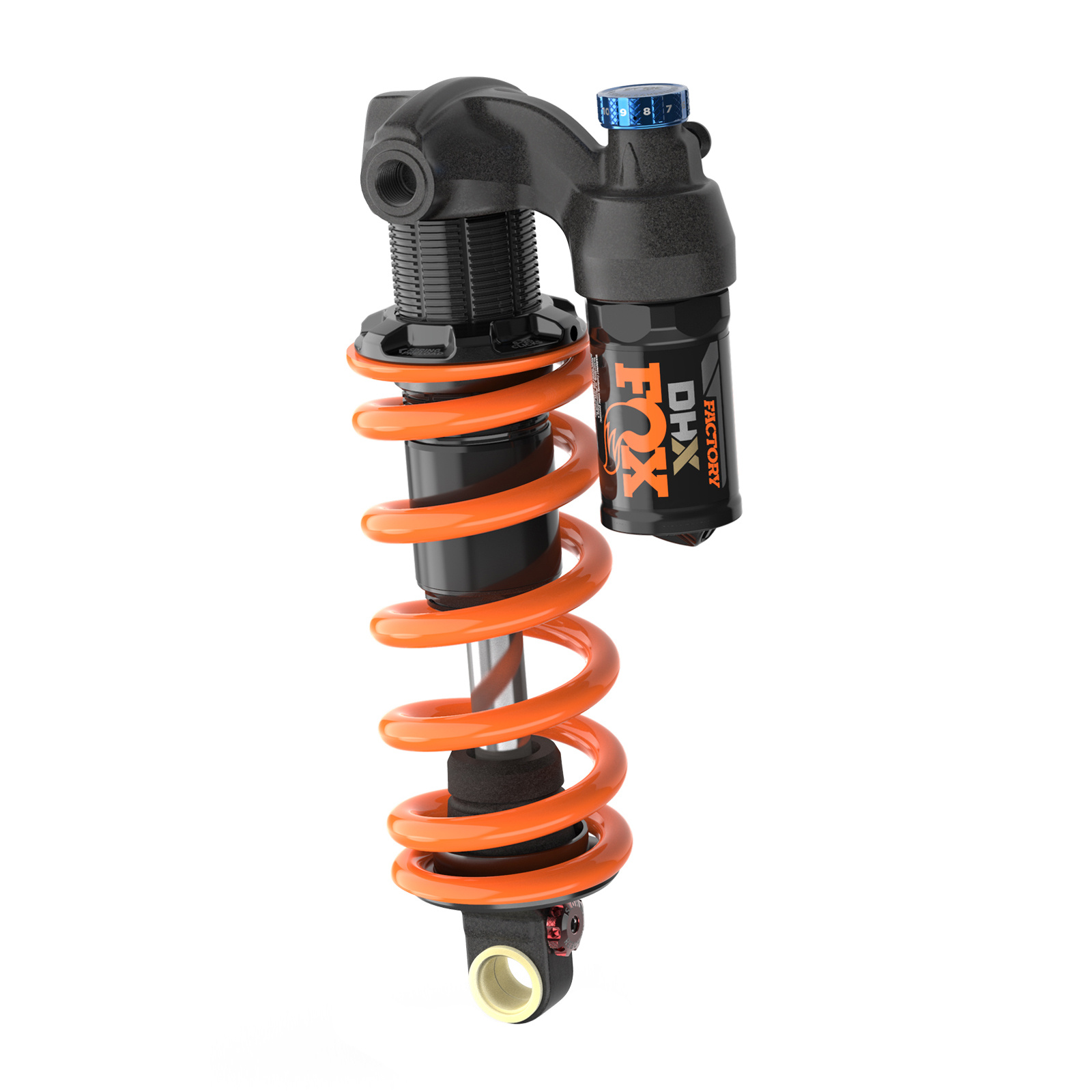

Answering the prayers of riders seeking the ultimate in plush suspension, the new Fox DHX brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond.
- ALL-NEW chassis and damper
- High-flow main piston

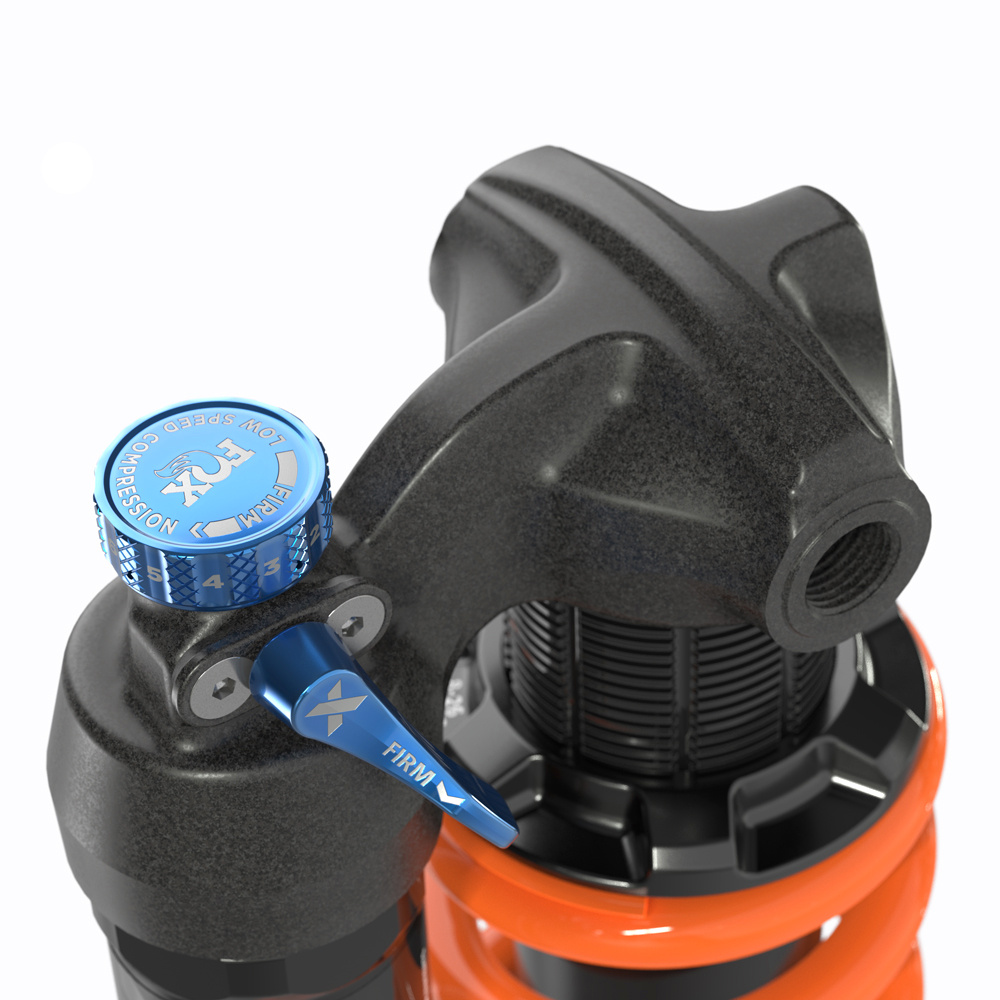

- Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
- Independent firm mode circuit – 2 position adjuster
- Optimized reservoir lengths per shock size
- Hydraulic top out feature
- Reduced damper noise
- MCU bottom out bumper

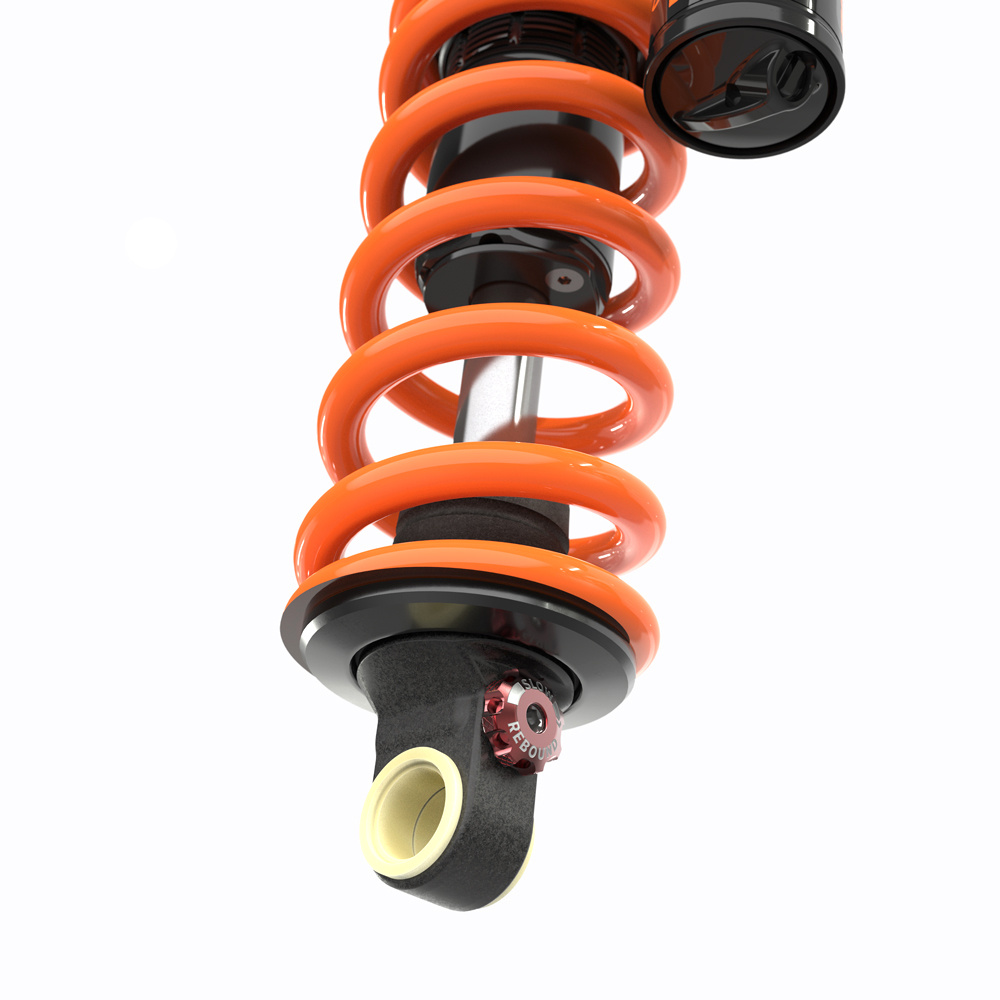

- Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex-direct access, 2mm hex, or similar-side access)
- Spring preload collar with detents and max/min number of clicks and direction arrow
- Full diameter spring retainer with wire ring (like DHX2)
- Spring scuff guard on body (like DHX2)
Specifications
- Collection: DHX
- Series: Factory
- Shaft Finish: Chromoly - Ultra-low friction, highly durable damper shaft finish
- Spring: Coil not included, sold separately
- Metric Standard // Trunnion
- Adjustment: Independent 2 Position Open/Firm Lever, LSR 16 Clicks, LSC 11 Clicks, Coil spring preload (new detents on spring collar)
Need help to calculate your spring weight?
Email the team with your rider weight, bike, and preferred riding style so that we can suggest the correct coil spring. Contact us if you have any questions.
